All-Round Performer, Safety Assured
*Product appearance is subject to the actual product shipped.
T100S & T70S Model Comparison
| T100S | T70S | |
|---|---|---|
| Spraying Payload | 85 L | 50 L |
| Max Spray Flow Rate | Dual-atomization centrifugal sprinkler: 40 L/min Mist sprinkler (optional): 50 L/min | Dual-atomization centrifugal sprinkler: 40 L/min Mist sprinkler (optional): 50 L/min |
| Droplet Size | Dual-atomization centrifugal sprinkler: 50 - 500 μm Mist sprinkler (optional): 10 - 500 μm | Dual-atomization centrifugal sprinkler: 50 - 500 μm Mist sprinkler (optional): 10 - 500 μm |
| Spreading Capacity | 126 L (90 kg) | 126 L (70 kg) |
| Max Spreading Flow Rate | 400 kg/min | 400 kg/min |
| Lifting Payload | 95 kg | 70 kg |
| Safety Features | 256-line LiDAR Quad Fisheye Vision System Millimeter-Wave Radar | 256-line LiDAR Quad Fisheye Vision System Millimeter-Wave Radar |
| Remote Control Options | DJI RC Plus 2 AG Large-Screen Remote Controller DJI RC Mini AG Mini Remote Controller DJI SmartFarm (mobile app) | DJI RC Plus 2 AG Large-Screen Remote Controller DJI RC Mini AG Mini Remote Controller DJI SmartFarm (mobile app) |
| Battery | DB2212 (41 Ah capacity) | DB1580 (30 Ah capacity) |
| Generator / Charger | D14000iE Multifunctional Inverter Generator C12000 Intelligent Charger CC15000 Intelligent In-Vehicle Charger | D12500iE Multifunctional Inverter Generator C12000 Intelligent Charger CC15000 Intelligent In-Vehicle Charger |
Specs
Aircraft

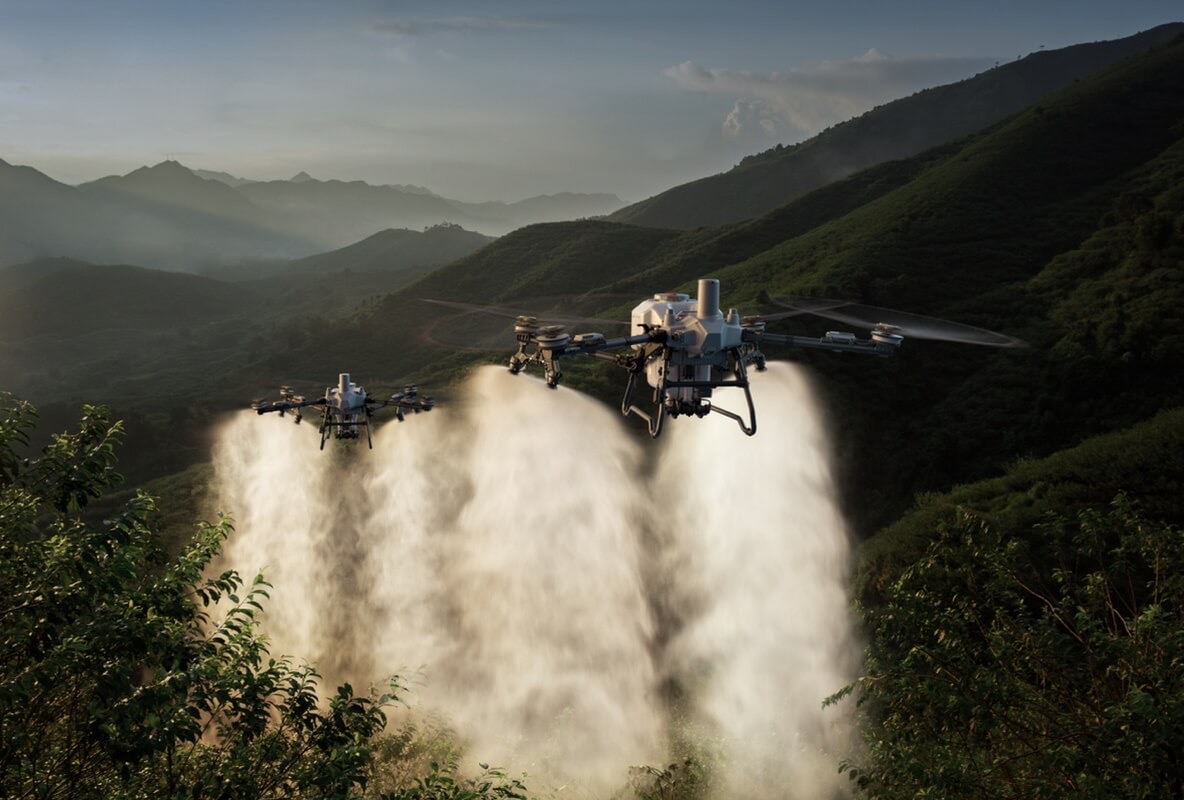

Two Models, Each to Its Strength: T100S & T70S
The upgraded DJI T100S handles every scenario with flagship-grade hardware. The more practical T70S carries the same safety system as the T100S, delivering flagship value with no compromise on safety.
Max Takeoff Weight 149.9 kg
Powerful propulsion and a max takeoff weight of 149.9 kg raise both operation quality and efficiency for an all-round performance upgrade.
- Empty Weight (incl. battery)
- T100S: 57kg (standard 2 sprinklers + 85 L spray tank + DB2212 battery)
T70S: 53kg (standard 2 sprinklers + 50L spray tank + DB1580 battery) - Max Takeoff Weight
- T100S:Max spraying takeoff weight: 142 kg (standard 2 sprinklers)
Max spraying takeoff weight: 146 kg (optional 4 sprinklers)
Max spreading takeoff weight: 149.9 kg (with spreading system)
Max lifting takeoff weight: 149.9 kg (with lifting system)
T70S:Max spraying takeoff weight: 103 kg (standard 2 sprinklers)
Max spraying takeoff weight: 107 kg (optional 4 sprinklers)
Max spreading takeoff weight: 127 kg (with spreading system)
Max lifting takeoff weight: 122 kg (with lifting system) - Max Wheelbase (Diagonal)
- 2415mm (diagonal wheelbase)
- Dimensions
- Arms unfolded, propellers unfolded: 3190 mm × 3570 mm × 934 mm;
Arms unfolded, propellers folded: 1800 mm × 2170 mm × 934 mm;
Arms folded, propellers folded: 1120 mm × 896 mm × 934 mm; - Hovering Accuracy (with strong GNSS signal)
- RTK enabled: ± 10 cm (horizontal), ± 10 cm (vertical)
RTK disabled: ± 0.6 m (horizontal), ± 0.3 m (vertical) - Configurable Max Flight Radius
- 2 km
- Operating Temperature
- 0℃ to 40℃
- Max Wind Resistance
- 6m/s
Propulsion System - Motors
- Stator Size
- 155 × 24 mm
- Motor KV
- 55 rpm/V
Propulsion System - Propellers
- Material
- Carbon fiber composite
- Size
- 62 inch
- Number of Rotors
- 4 pairs
Spraying Payload - Tank

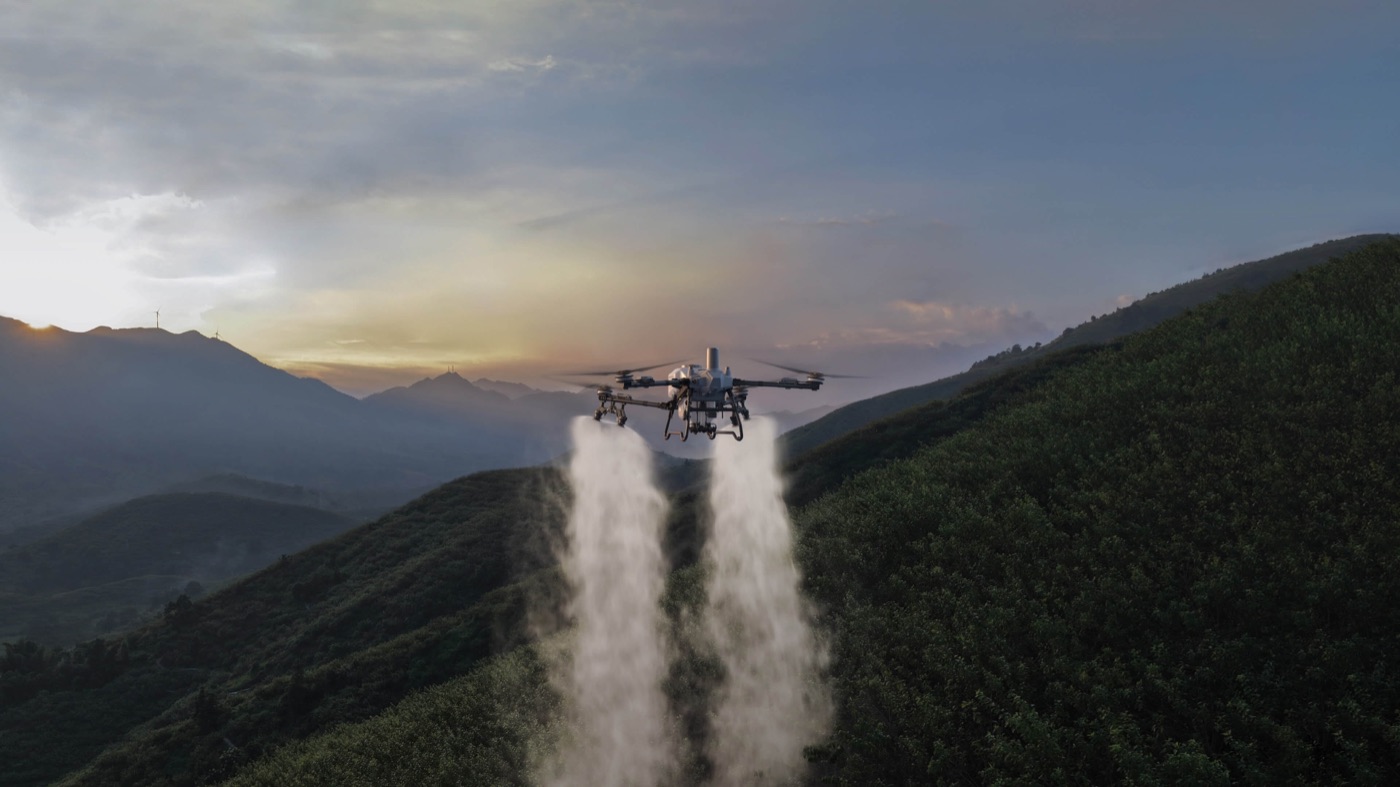

Spraying System: High Volume, Even and Thorough Coverage
85 L spraying capacity. In orchard spraying, 10 μm droplet flow is increased 3× and leaf-underside coverage by 50%. Effective spray width of 4 - 11 m in field crops.

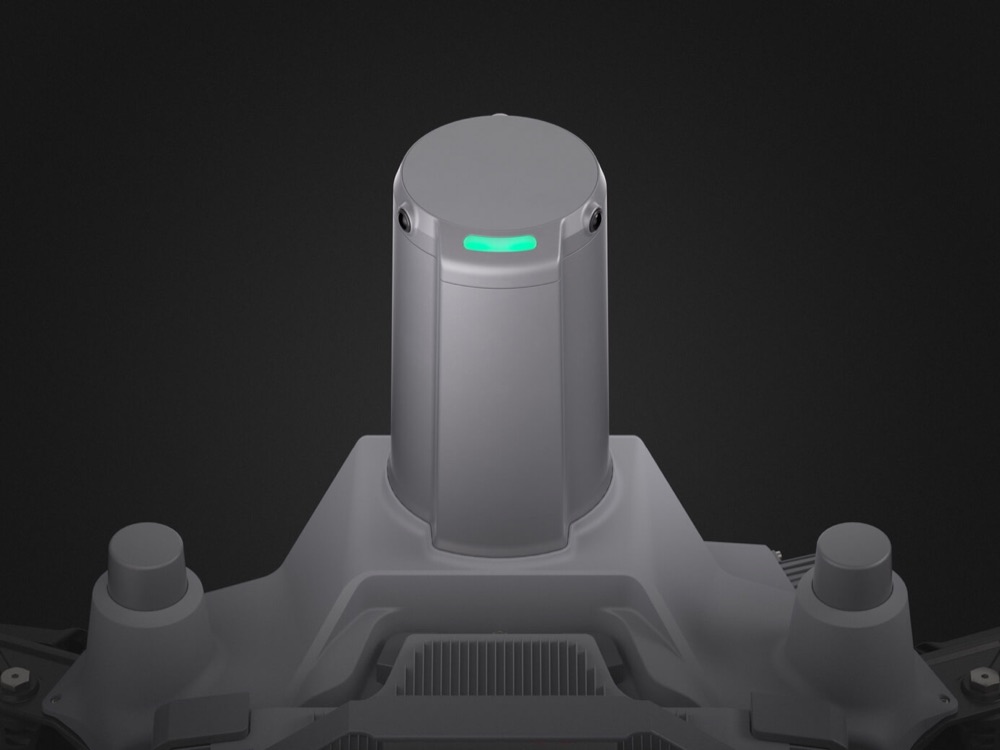

Payload Indicator Light
A new payload indicator light shows the current tank load through different light patterns, making night operations more convenient.
- Material
- HDPE
- Operation Tank Volume
- T100S: 85 L
T70S: 50 L - Operating Payload
- T100S: 85 kg
T70S: 50 kg
Spraying Payload - Sprinklers

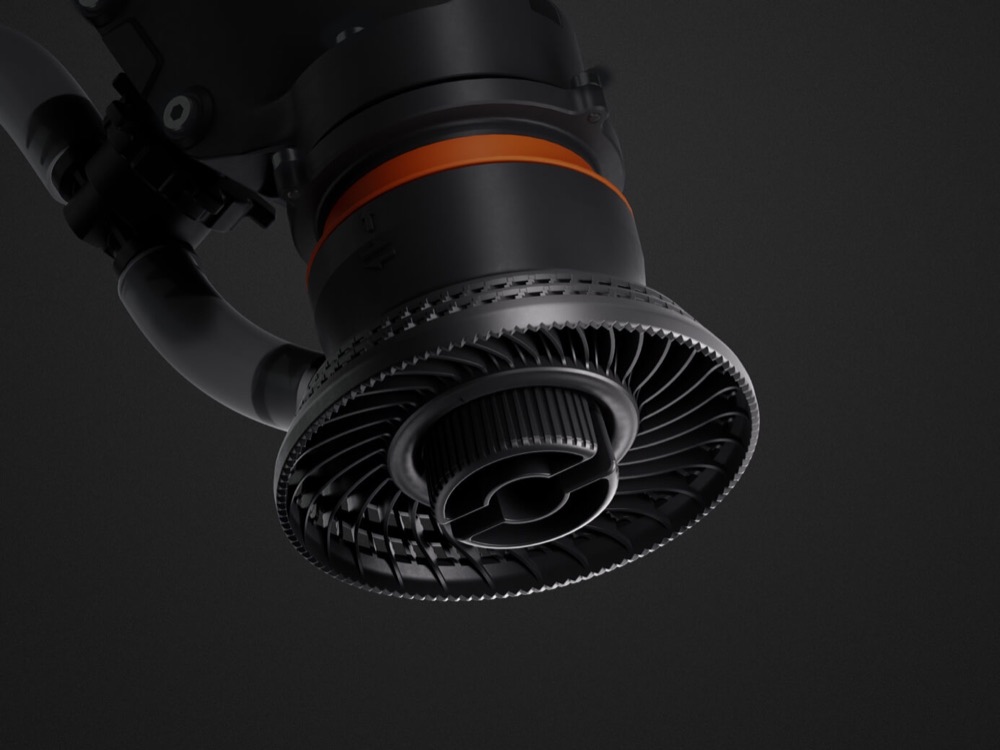

Dual-Atomization Centrifugal Sprinkler
Dual-atomization centrifugal sprinklers come standard, with 30% better atomization for superior results.

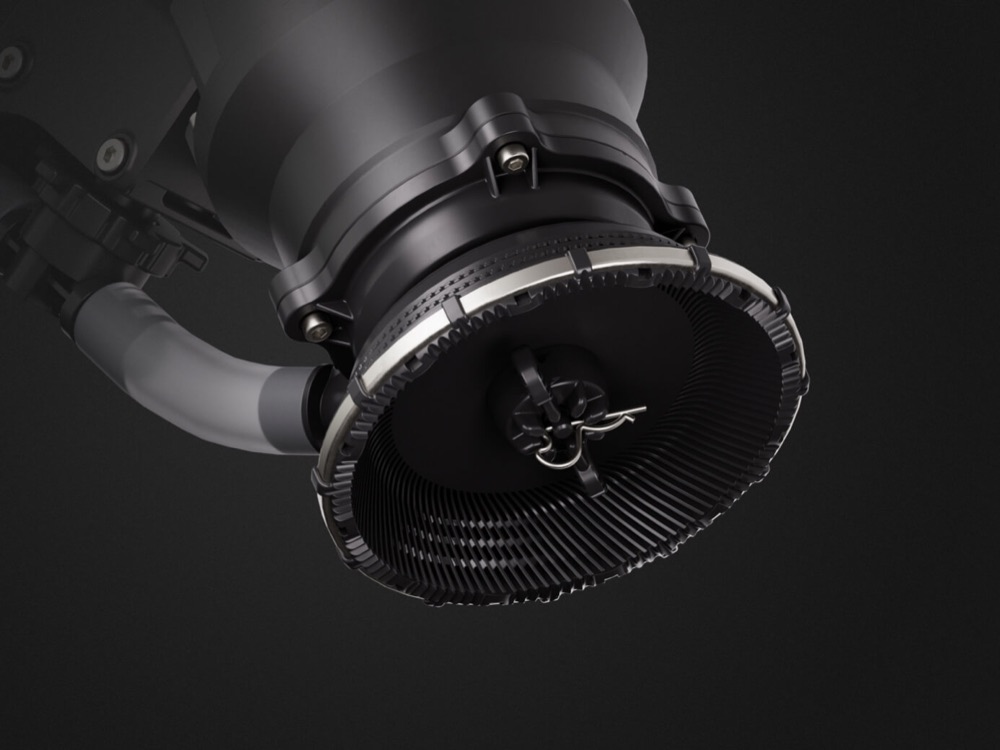

Mist Sprinkler (Optional)
Droplets as fine as 10 μm combine high flow with fine mist, driving the spray deep into leaf undersides for thorough coverage.

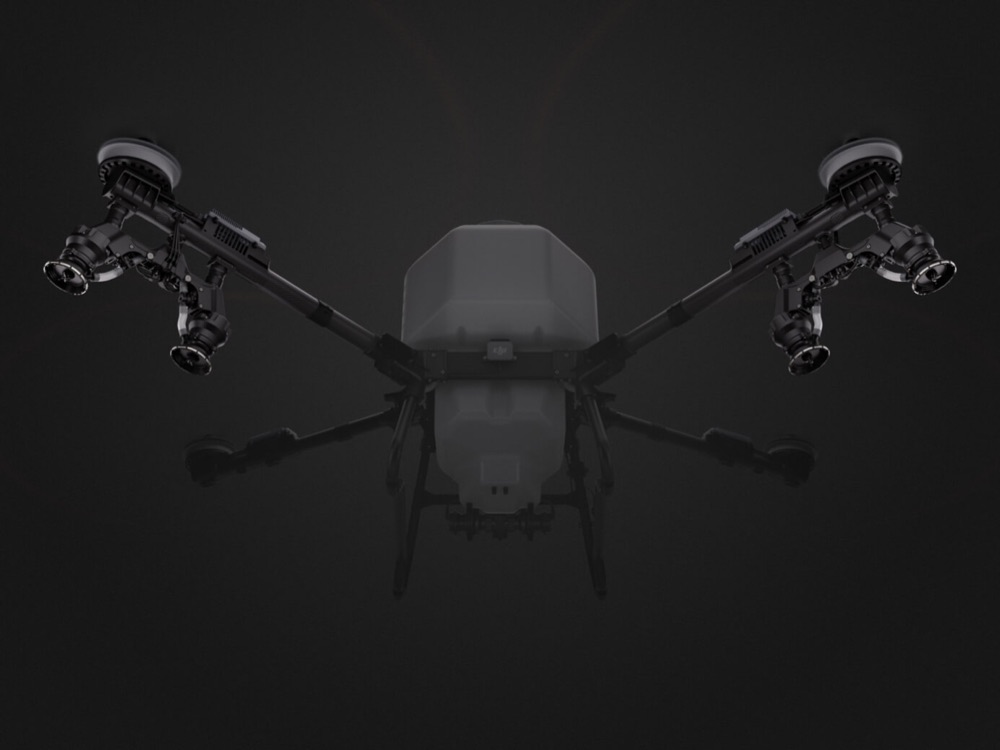

Rear Quad-Sprinkler Layout
Four rear-mounted mist sprinklers ensure uniform coverage during low-speed orchard operations and reduce mist interference with the vision system.
- Sprinkler Model
- LX09050DX (standard dual-atomization centrifugal sprinkler) / LX09510DX (optional mist sprinkler)
- Number of Sprinklers
- 2 (standard) / 4 (optional)
- Sprinkler Spacing
- 1800 mm (standard 2 sprinklers)
- Atomized Droplet Size
- Dual-atomization centrifugal sprinkler: 50 - 500 μm
Mist sprinkler: 10 - 500 μm - Effective Spray Width
- 4 - 11 m
Spraying Payload - Pump

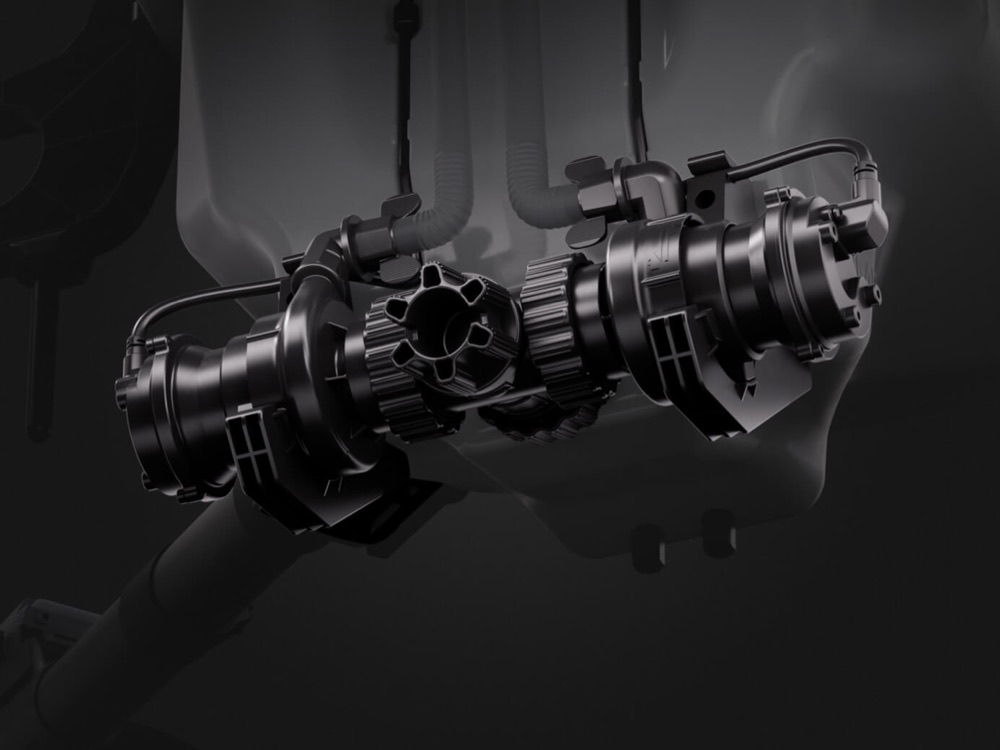

Magnetic-Drive Impeller Pump
An optimized impeller and larger chamber volume meet high-flow demands such as orchard spraying. Corrosion-isolated for stable, reliable performance.

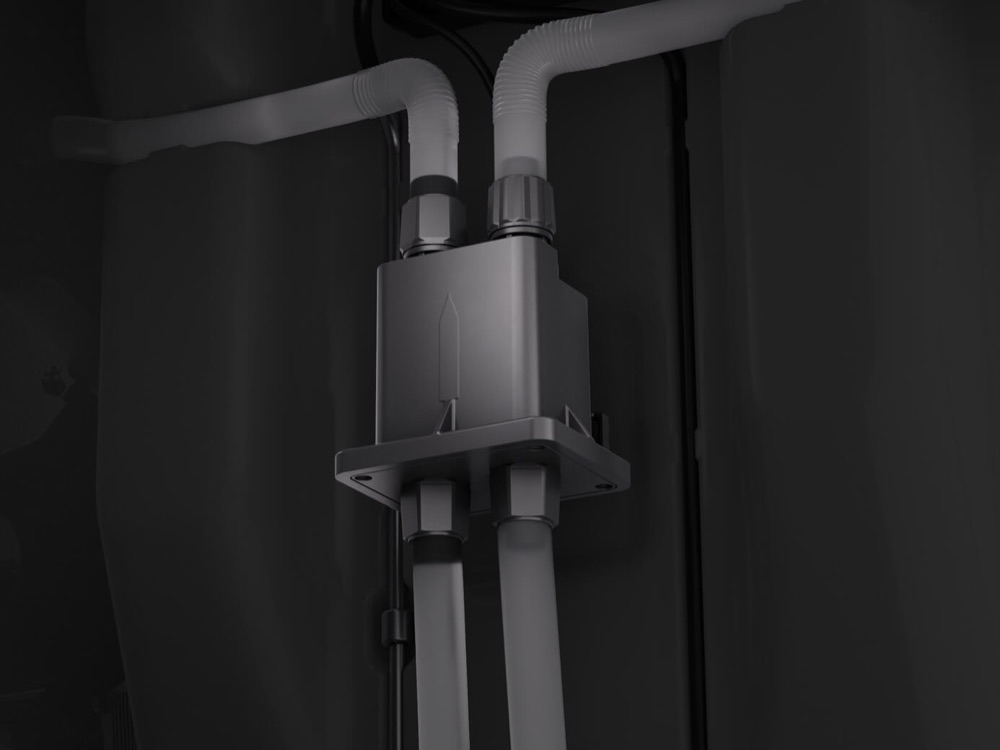

Dual-Channel Electromagnetic Flowmeter
Accurate real-time flow detection and dynamic control ensure high-precision operations. No direct contact with the liquid prevents corrosion for greater durability.
- Pump Type
- Impeller pump (magnetic drive)
- Number of Pumps
- 2
- Max Flow Rate
- 40 L/min (standard 2 sprinklers), 50 L/min (optional 4 sprinklers)
DS125L Spreading System

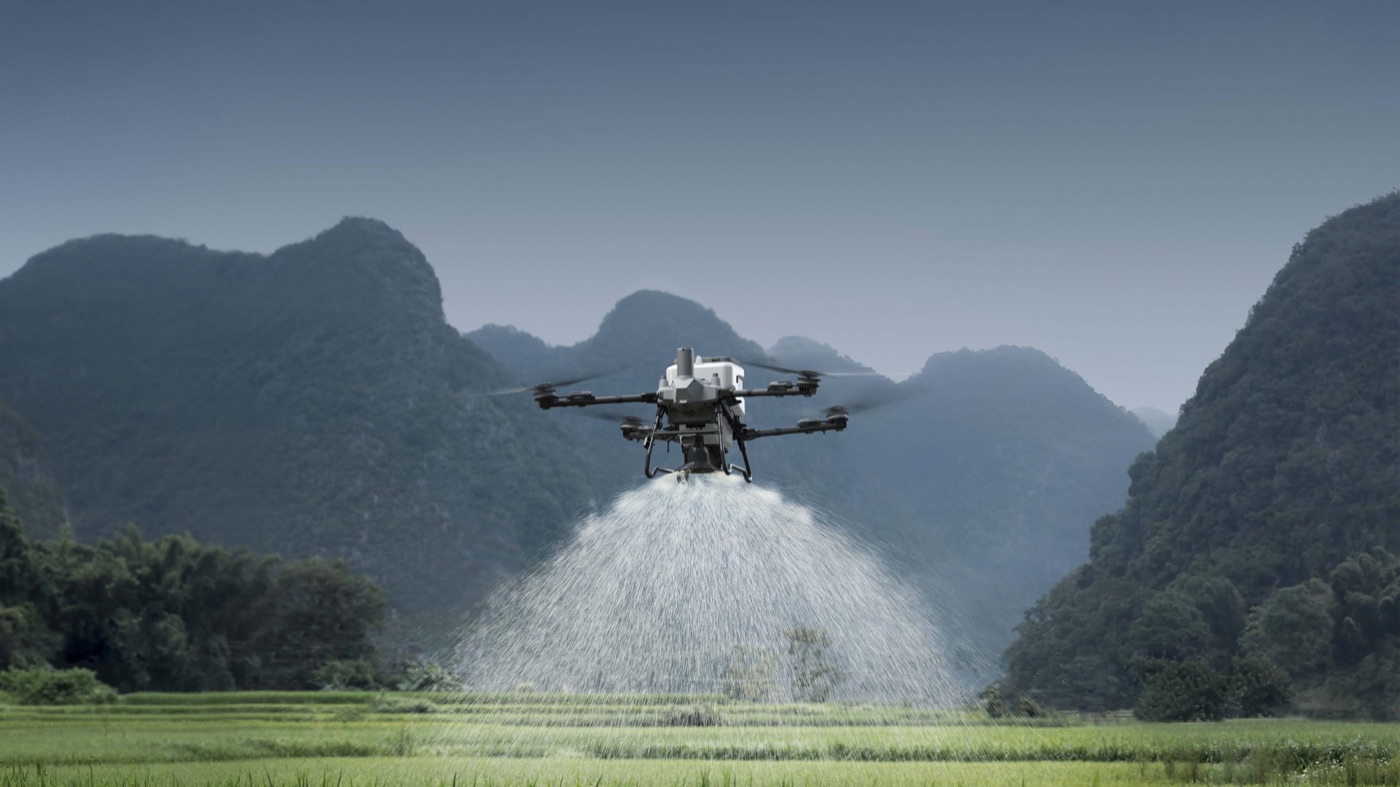

Spreading System: Two Bags of Fertilizer per Flight
Carries more: two bags of fertilizer per flight with a stable takeoff. Spreads faster: one bag every 9 seconds for highly efficient spreading.

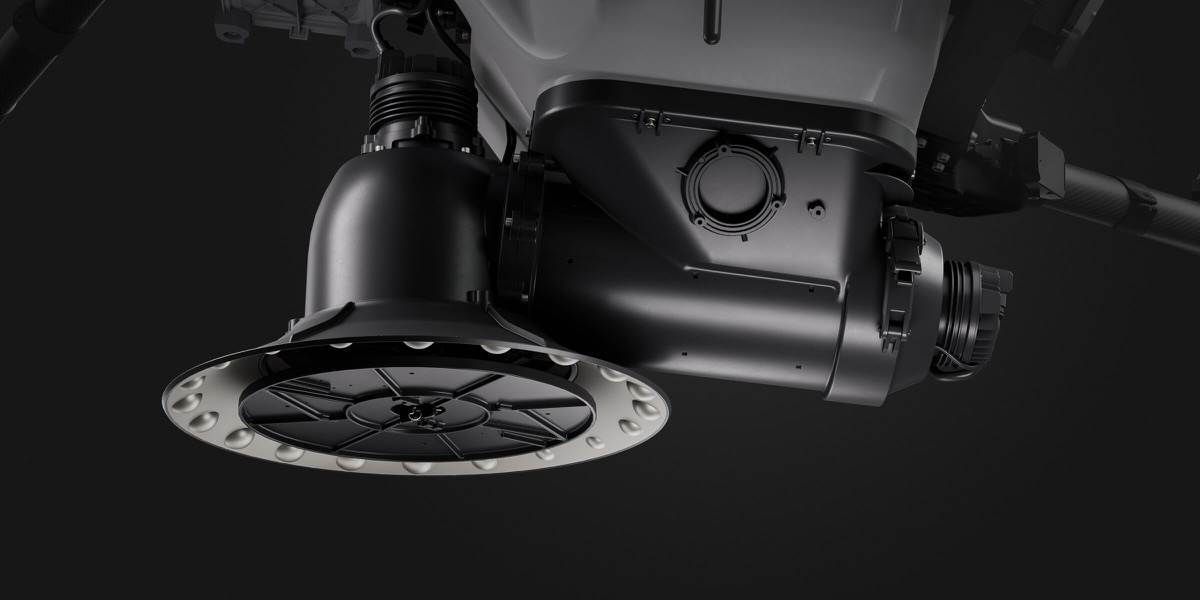

Auger Spreader
The upgraded auger spreader features an optimized chamber design and a high-torque motor for clog-free, leak-free operation.

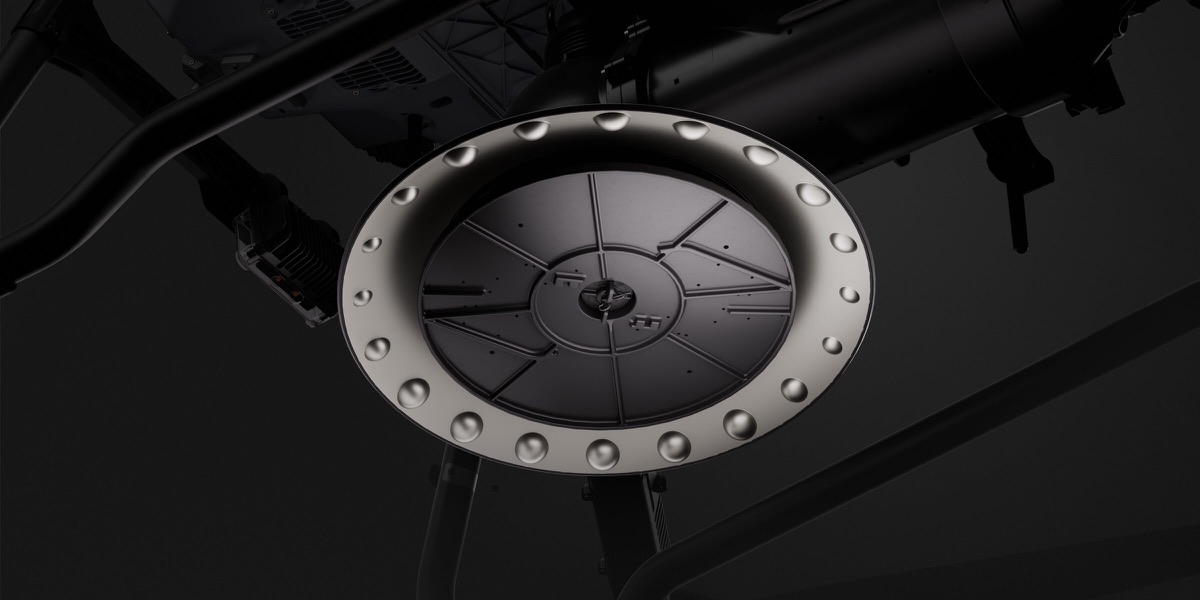

Centrifugal Spinner Disc
Uniform spreading across the full flow range for outstanding results. A stainless steel brim adds strength and durability.

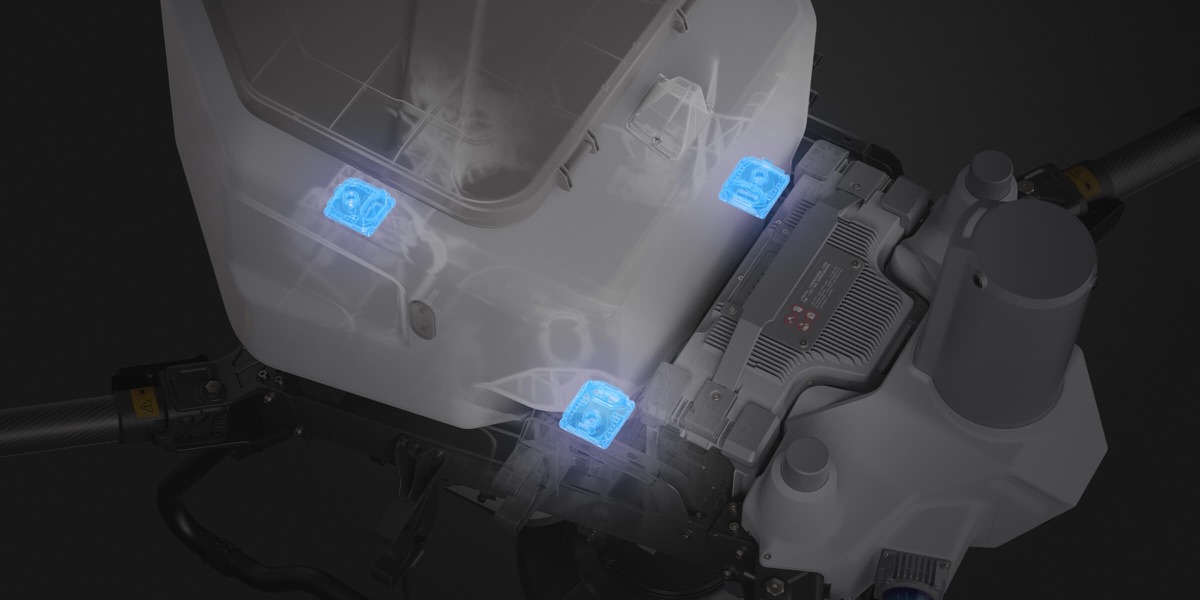

High-Precision Weighing Sensor
Displays material weight accurately in real time so you load only what you need, effectively avoiding waste.
- Applicable Materials
- Standard:Extra-large auger: 0.5 mm - 10 mm granules (fertilizer, wheat, feed, etc.)
Medium auger: 4 mm - 6 mm granules (rice)
Optional:Large auger: 4 mm - 10 mm granules (rice, fertilizer)
Small-medium auger: 0.5 mm - 2mm granules (crayfish and freshwater shrimp feed)
Small auger: 0.5 mm - 4 mm granules (rapeseed, granular herbicides, granular insecticides) - Operation Tank Volume
- 126 L
- Spreader Type
- Centrifugal spinner disc
- Discharger Type
- Auger feeding
- Max Discharge Rate
- 400 kg/min (measured with compound fertilizer)
- Spreading Payload
- T100S: 90 kg
T70S: 70 kg - Effective Spreading Width
- 3 - 10 m
DS100L Dual-Auger Vibrating Spreading System

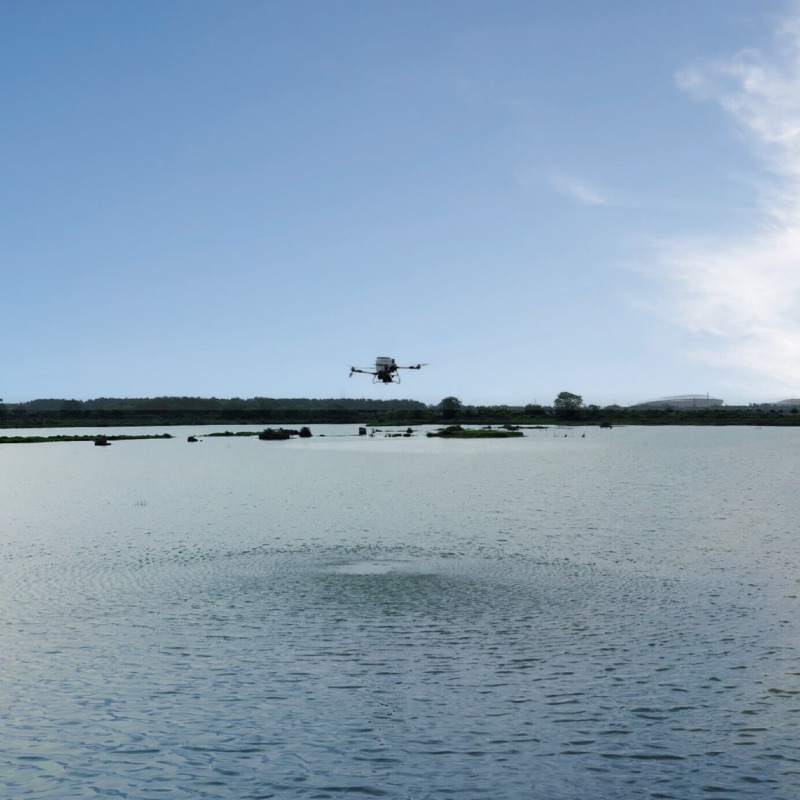

Aquaculture
Designed for fish, crab, crayfish, and other farming scenarios, it spreads common materials such as frozen fish and small feed pellets. The dual-auger structure with a vibration motor delivers smooth, efficient spreading.

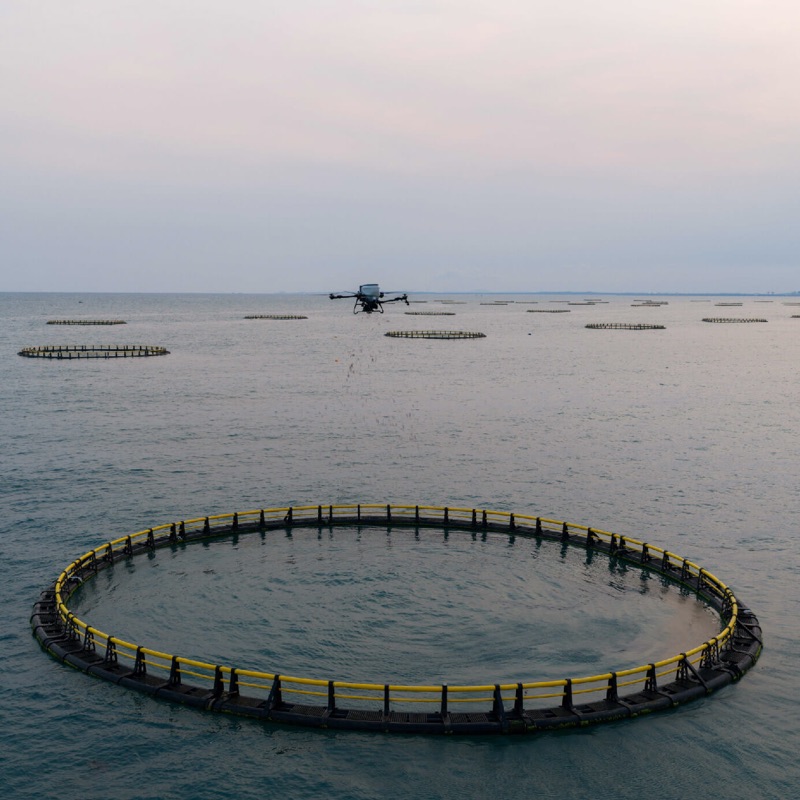

Mariculture
Choose the extra-large auger for frozen fish and feed pellets for high-flow efficiency, or the small-medium auger for small feed pellets to flexibly meet the needs of different feeding stages.

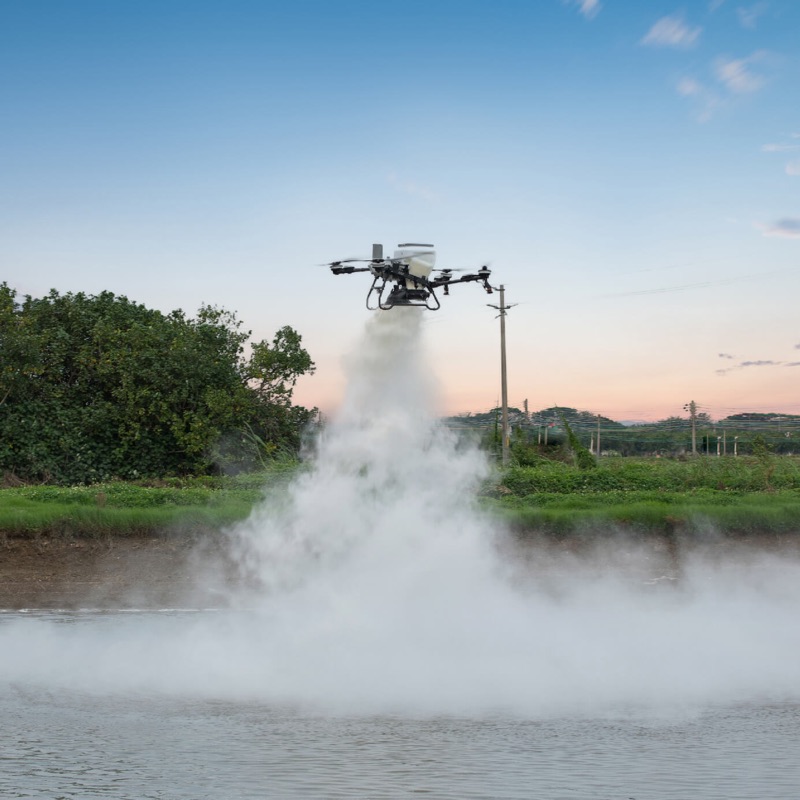

Pond Cleaning and Treatment
Spreads lime powder, granular disinfectants, and other materials for pond cleaning, pond-bottom improvement, and disinfection.

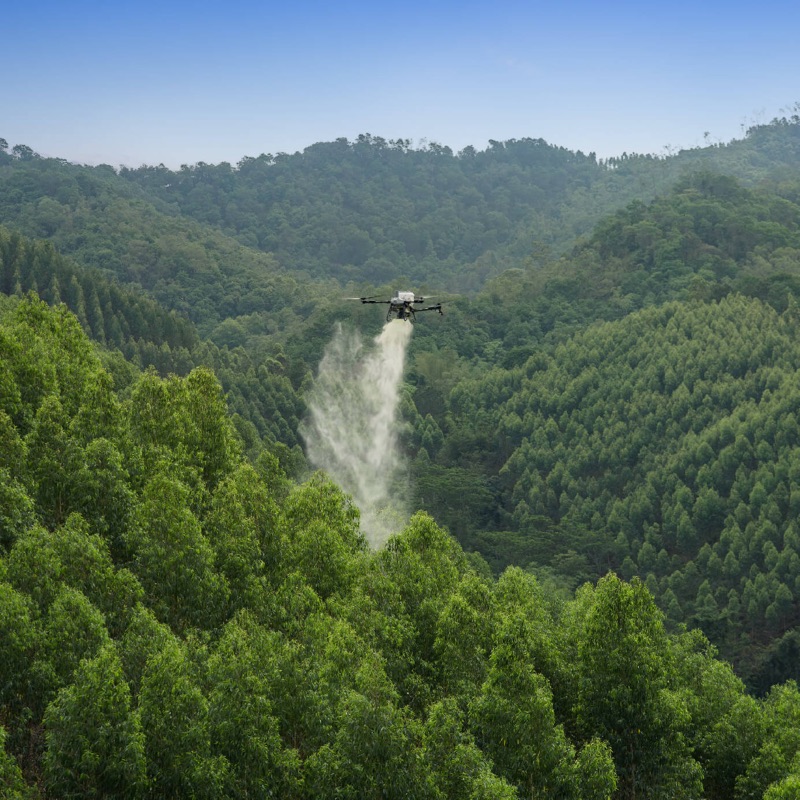

Tree Protection
Spreads powders such as sulfur in areas that are hard to reach on foot or where prolonged contact with powder should be avoided, reducing the ground workload.
- Applicable Materials
- Standard:Extra-large auger: 0.5~10mm granules (frozen fish, duck liver); application rate per mu: 5~30kg
Small-medium auger (incl. auger sleeve): 0.5~4mm granules (crayfish feed, freshwater shrimp feed, powders, frozen fish); application rate per mu: 1.5~15kg - Operation Tank Volume
- 100L
- Spreader Type
- Centrifugal spinner disc
- Discharger Type
- Dual-auger feeding
- Max Discharge Rate
- 300kg/min (measured with frozen fish as a typical material)
- Spreading Payload
- T100S: 86kg
T70S: 66kg
T55: 50kg - Effective Spreading Width
- 8m

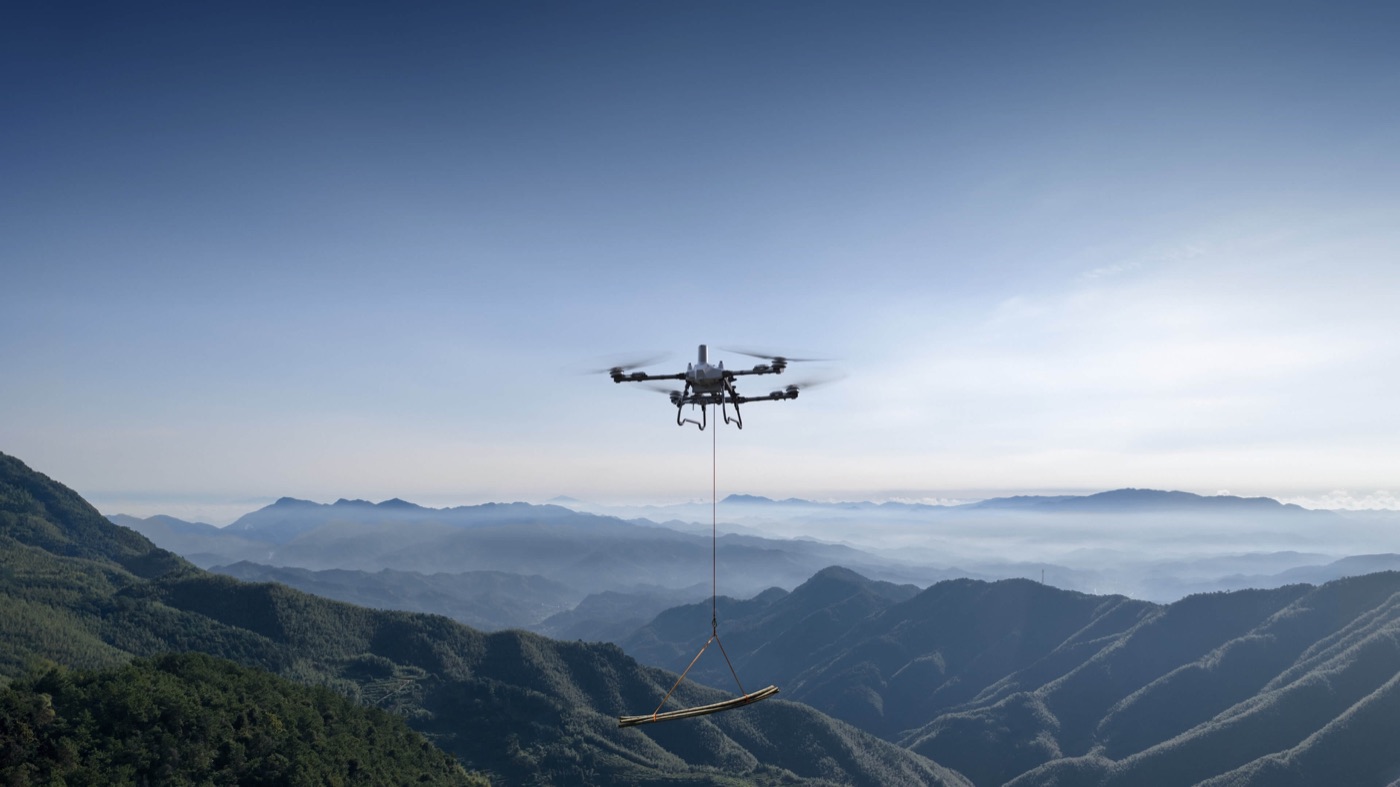

DL100 Lifting System
Lifting System: A Reliable Helper for Agricultural Transport
A three-axis force sensor detects cargo swing and automatically dampens it. A pull-lever rope release frees the drone within 3 seconds.
Cargo Obstacle Avoidance
A new cargo obstacle avoidance algorithm slows down in advance based on obstacle positions during flight, reducing the risk of entanglement and improving safety.
Automatic Weighing
Cargo weight is clear at a glance, and lifted weight can be shown cumulatively for easy settlement.
- Lifting Payload
- T100S: 95 kg
T70S: 70 kg - Lifting Rope Length
- 10 m
- Recommended Lifting Rope Length
- 10 - 15 m
- Operating Temperature
- 0℃ to 40℃
- Applicable Scenarios
- For use in agriculture, forestry, animal husbandry & fishery scenarios only
Safety System

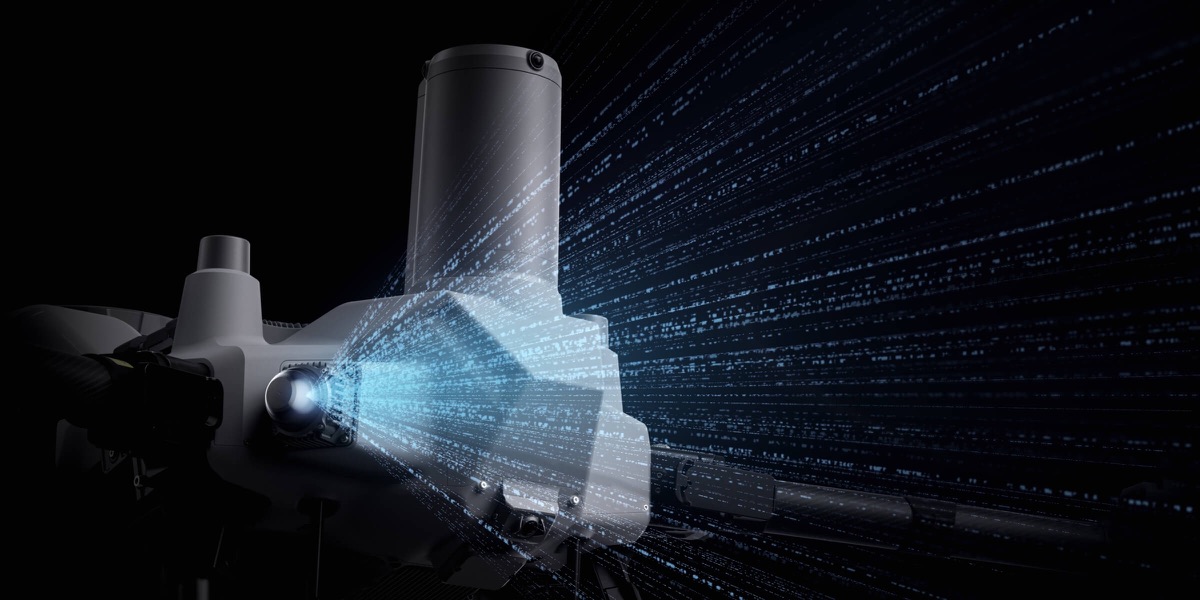

256-Line LiDAR
The fully upgraded LiDAR detects small objects 5× better, with 153% higher point cloud density, picking up power lines and other fine obstacles.

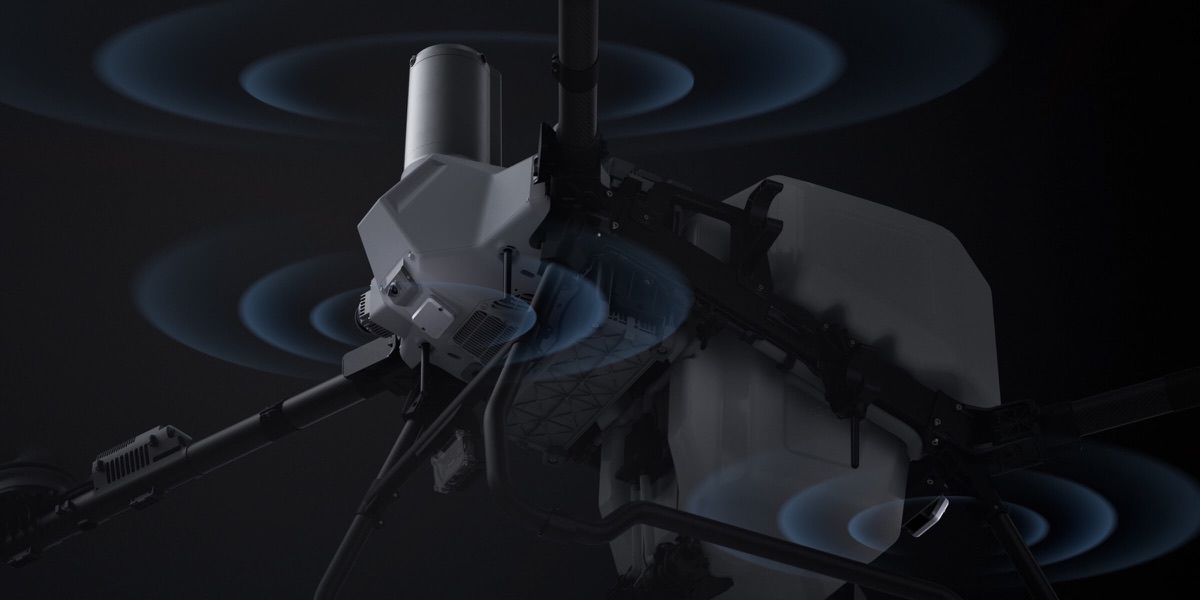

Millimeter-Wave Radar
130% more transmit and receive antennas, point cloud density of up to 250,000 points/s, and 3× the performance. Unaffected by rain and fog, it ensures safe operations in all weather.

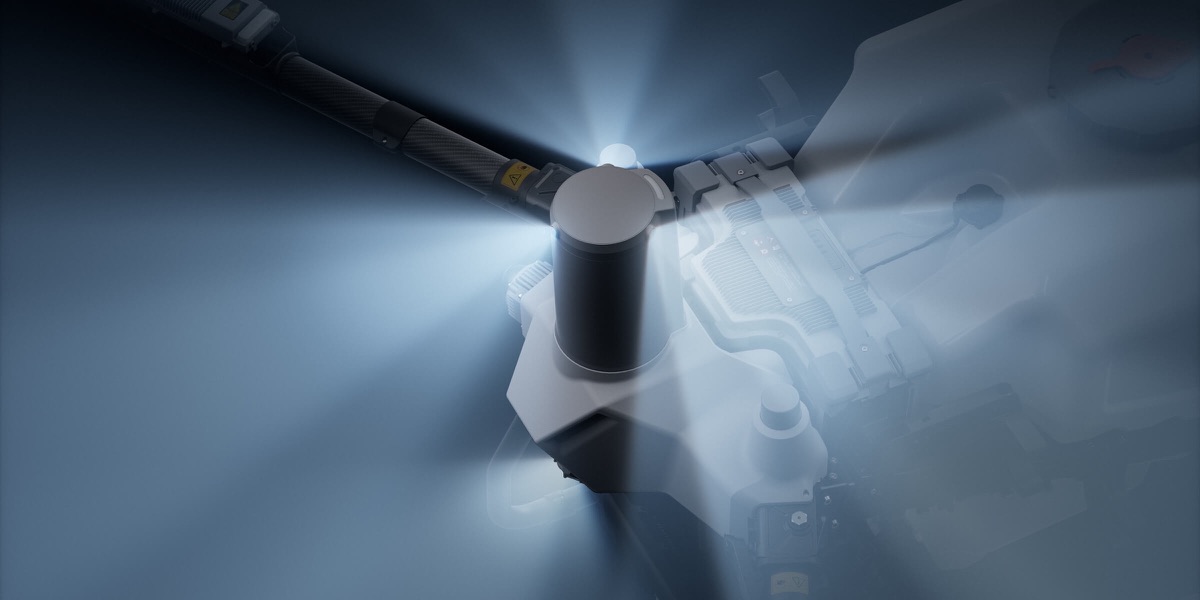

Quad Fisheye Vision System
Three top-mounted cameras plus a low-light full-color FPV camera provide front, rear, left, right, and downward flight views, and support AR features such as pedestrian detection.
- Radar EIRP
- < 20 dBm (NCC / MIC / KC / CE / FCC)
< 13 dBm (MIC) - Operating Temperature
- 0℃ to 40℃
- Operating Environment Requirements
- Normal lighting, richly textured surroundings, no dirt on sensors.
- Power Consumption
- LiDAR: 6 W
Front radar: 36 W (peak)
Downward radar: 3.5 W (peak)
Rear radar: 3.5 W (peak) - FOV
- Front radar: horizontal 360°, vertical ± 45°
Downward radar: left/right ± 45°, front/back ± 45°
Rear radar: left/right ± 45°, front/back ± 45°
LiDAR: vertical 270°, horizontal ± 30°
Trinocular vision system: horizontal 360°, vertical 180°
FPV camera: horizontal 86°, vertical 155° - Measurement Range
- 120 m
- Effective Obstacle Avoidance and Bypass Speed
- ≤ 13.8 m/s
- Effective Obstacle Avoidance Altitude
- ≥ 1 m
- Safe Distance
- 2.5m (distance from obstacle after the aircraft brakes and hovers stably)

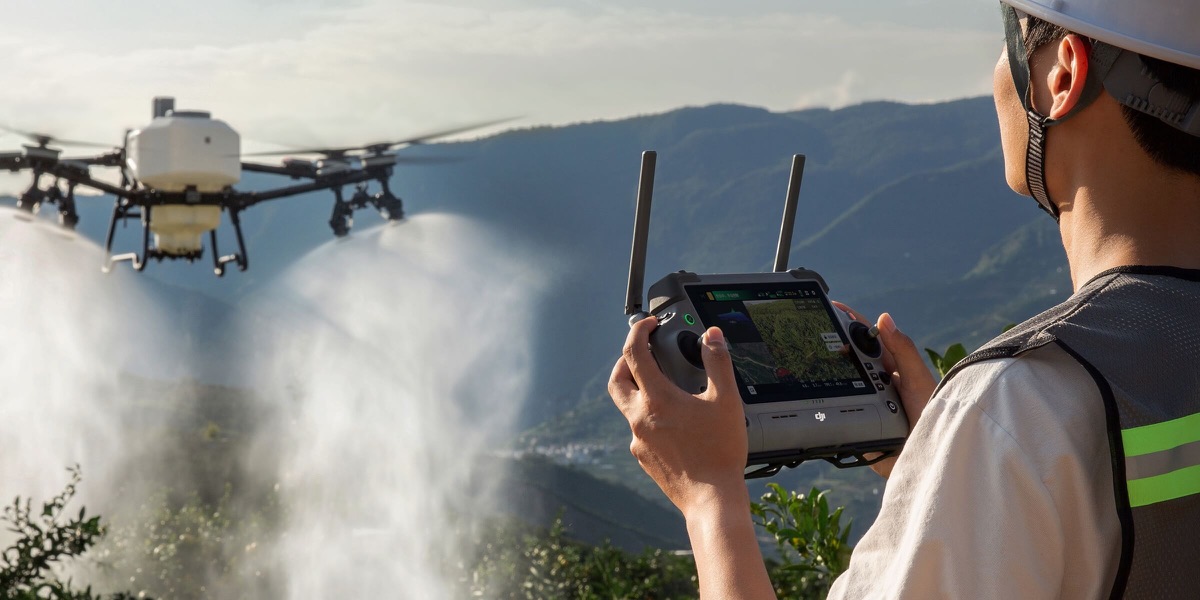

DJI RC Plus 2 AG
Large-Screen Remote Controller Operation
A 7-inch large-screen remote controller built for professional, all-round use. Feature-rich and suited to both automatic and manual operations in all scenarios. Supports O4 video transmission and 4G Enhanced Video Transmission, working with or without network coverage.
- Model
- TKPL 2
- Display
- 7-inch touchscreen LCD, 1920 × 1200 resolution, 1400 cd/m² brightness
- Storage Temperature
- - 30 ℃ to 45 ℃ (less than one month)
- 30 ℃ to 35 ℃ (more than one month, less than three months)
- 30 ℃ to 30 ℃ (more than three months, less than one year) - Charging Temperature
- 5 ℃ to 40 ℃
- Internal Battery Runtime
- 3.8 h
- External Battery Runtime
- 3.2 h
- Charging Method
- USB-C fast charger with max power of 65 W (max voltage 20 V); DJI Portable Charger recommended
- Charging Time
- 2 h for internal battery and for internal plus external batteries (powered off, using official charging method)

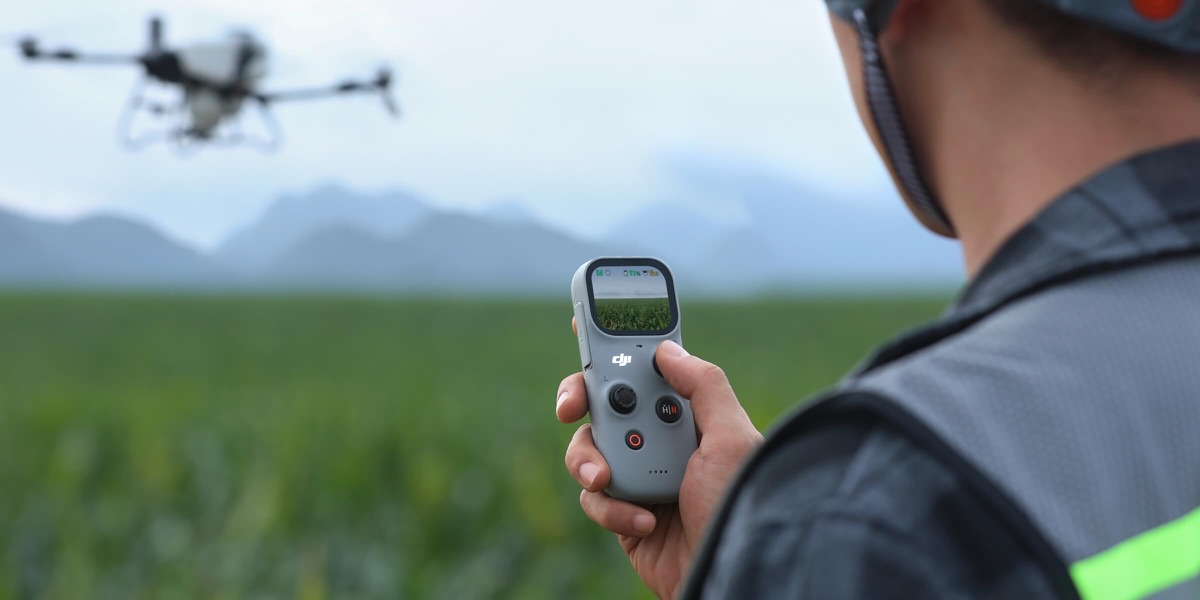

DJI RC Mini AG
Mini Remote Controller Control
Light and agile, ideal for emergency takeover and quick field transfers.

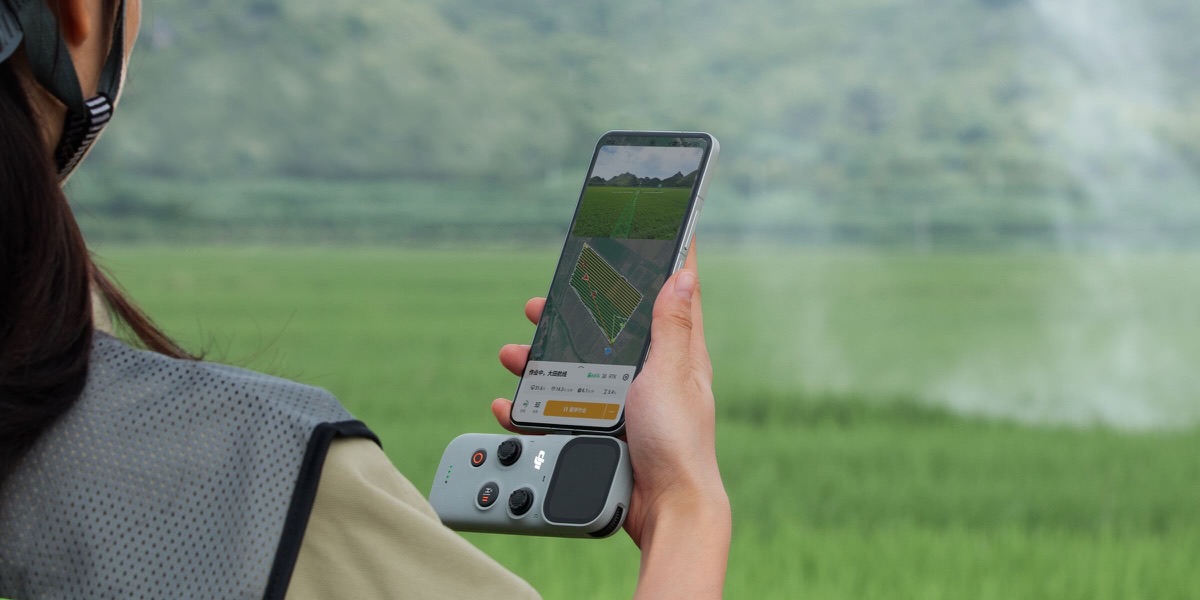

Phone + Mini Remote Controller Operation
Pair the mini remote controller with a phone for fully automatic operations. With no or weak network coverage, O4 video transmission through the mini remote controller keeps the signal stable and smooth.
- Model
- TKMI1
- Display
- 1.97-inch touchscreen LCD, 410 × 494 resolution, 800 cd/㎡ brightness
- Storage Temperature
- -20 ℃ to 45 ℃
- Charging Temperature
- 5 ℃ to 40 ℃
- Internal Battery Runtime
- 3 h
- Charging Method
- Recommended charging power 15 W, max voltage 5 V; use a standard 5V/3A USB-C fast charger; DJI Portable Charger recommended
- Charging Time
- 1.3 h

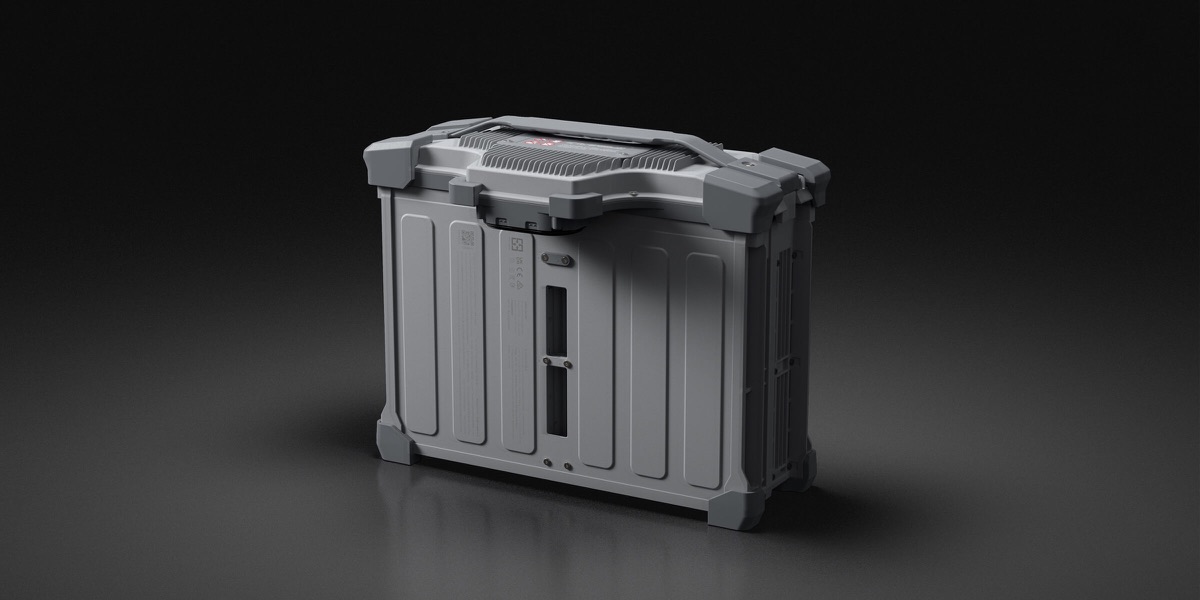

DB2212 Intelligent Flight Battery
DB2212 Intelligent Flight Battery
41 Ah high capacity, 8 - 9 min fast charging (30% - 95%), and multiple charging options. 1500 cycles under warranty; weight 15.2 kg.
- Weight
- 15 ± 0.3 kg
- Capacity
- 41000 mAh
- Voltage
- 52.5 V
DB1580 Intelligent Flight Battery
- Weight
- 11.7 ± 0.3 kg
- Capacity
- 30000 mAh
- Voltage
- 52 V

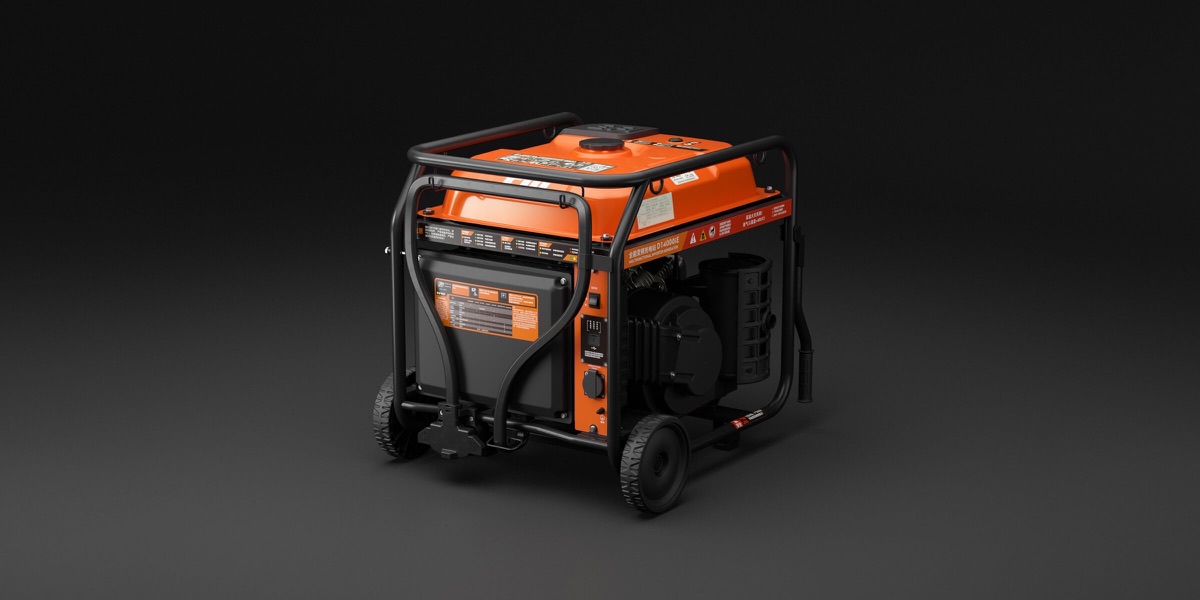

D14000iE Multifunctional Inverter Generator
D14000iE Multifunctional Inverter Generator
15% fuel savings with electronic fuel injection, 11.5 kW fast charging, 1500 W AC output, and an extra-long 1.8 m charging cable.
- Output Channels
- 1. DC charging output 42 - 61.6 V/11500W
2. Air-cooled heat sink power supply 12 V/6A/4.5A
3. AC output 220 V/1500W - Charging Time
- 8 - 9 min (DB2212 Intelligent Flight Battery, 30% - 95% charge)
- Fuel Tank Capacity
- 30 L
- Start Method
- One-button start
- Operating Temperature
- 0 ℃ to 40 ℃
- Compatible Batteries
- DB1050 / DB2212 / DB2160 / DB1580 / DB2100 Intelligent Flight Batteries
- Size
- Version A: 802 mm × 690 mm × 700 mm
Version B: 711 mm × 742 mm × 678 mm - Weight
- Version A: 85 ± 1 kg
Version B: 83 ± 0.3 kg - Fuel Type
- 92-octane gasoline or higher
- Reference Fuel Consumption
- 500 mL/kWh
- Engine Oil Capacity
- 1.3 L
- Engine Oil Type
- DJI dedicated engine oil SN15W-50

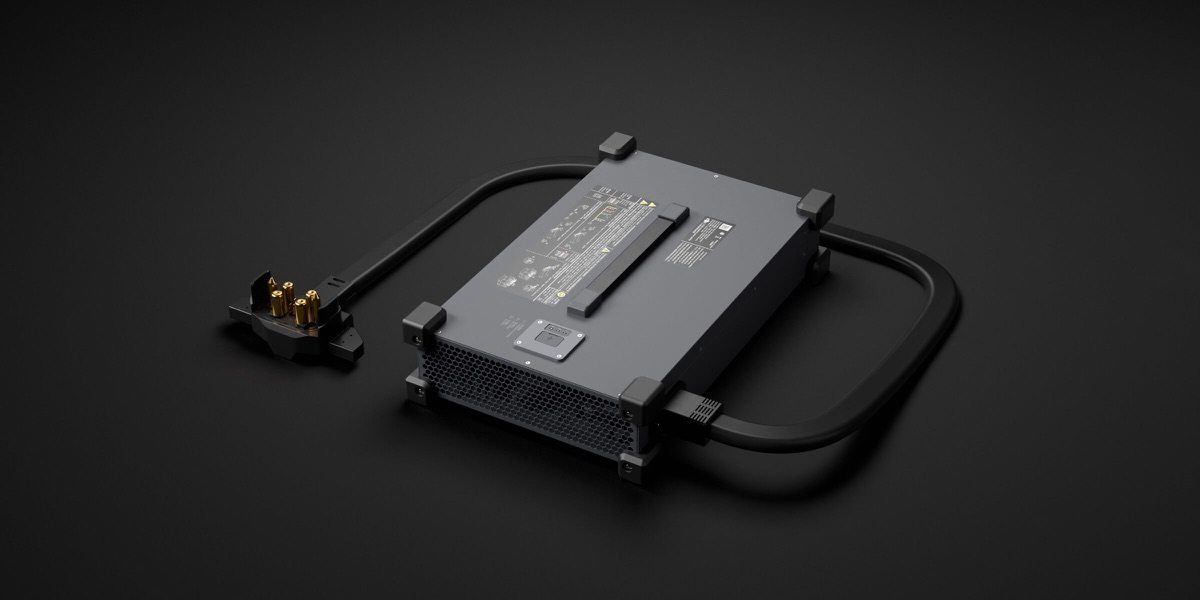

C12000 Intelligent Charger
C12000 Intelligent Charger
Three-phase power input, 12 kW fast charging, adaptive power protection, and an extra-long 1.8 m charging cable.
- Charger Model
- CSX901-12000
- Dimensions
- 456 mm × 291 mm × 107 mm
- Weight
- 13.13 kg
- Input Voltage
- Three-phase AC input: 175 - 520 V
Single-phase AC input: 200 - 264 V - Output Voltage
- 62 V
- Rated Output Current
- 194 A
- Rated Power
- 12000 W (three-phase 380 V input)
3000 W (single-phase 220 V input) - Charging Time
- 8 - 9 min (DB2212 Intelligent Flight Battery, 30 % - 95 % charge)
- Protection Features
- Over-temperature, overvoltage, undervoltage, short-circuit, and fan stall protection
- Operating Temperature
- 0℃ to 40℃
- Output Channels
- 1
- Compatible Intelligent Flight Batteries
- DB1050 / DB2212 / DB2100 / DB1580 / DB2160 Intelligent Flight Batteries

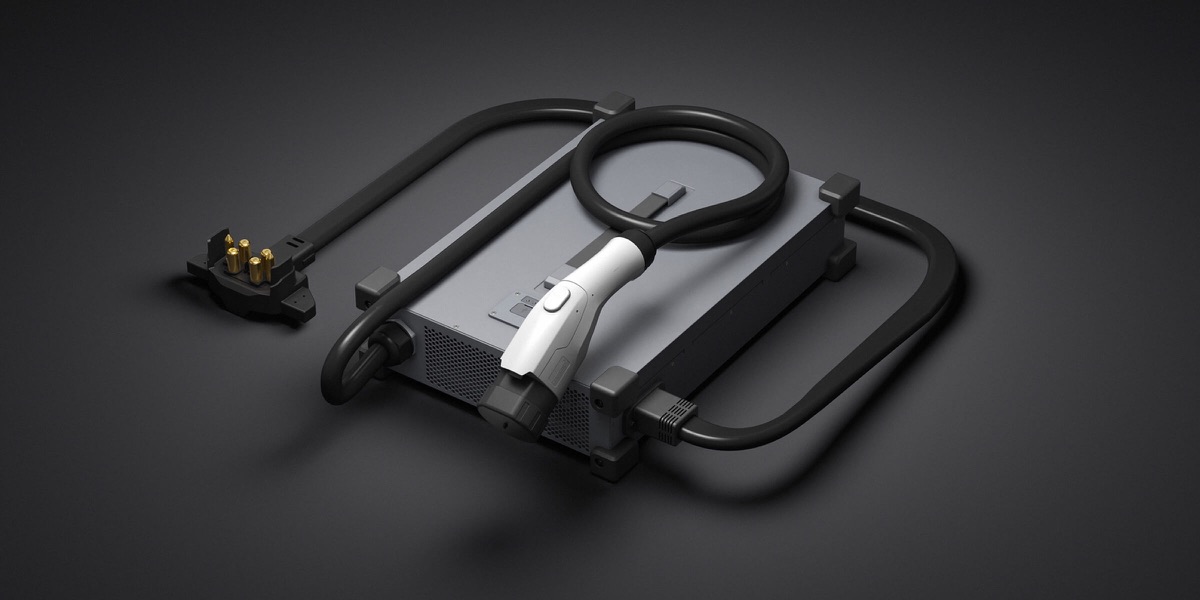

CC15000 In-Vehicle Charger
CC15000 Intelligent In-Vehicle Charger
15 kW max output power, quiet charging, and an extra-long 1.8 m charging cable.
- Charger Model
- CCX901-15000
- Dimensions
- 460 mm × 310 mm × 90 mm
- Weight
- 17 kg
- Input Voltage
- DC: 300 - 500V
- Output Voltage
- 62 V
- Rated Output Current
- 287 A
- Rated Power
- 15000 W
- Charging Time
- 7 - 8 min (DB2212 Intelligent Flight Battery, 30% - 95% charge)
- Protection Features
- Over-temperature, overvoltage, undervoltage, short-circuit, and fan stall protection
- Operating Temperature
- 0 ℃ to 40 ℃
- Output Channels
- 1
- Compatible Intelligent Flight Batteries
- DB1050 / DB2212 / DB2100 / DB1580 / DB2160 Intelligent Flight Batteries

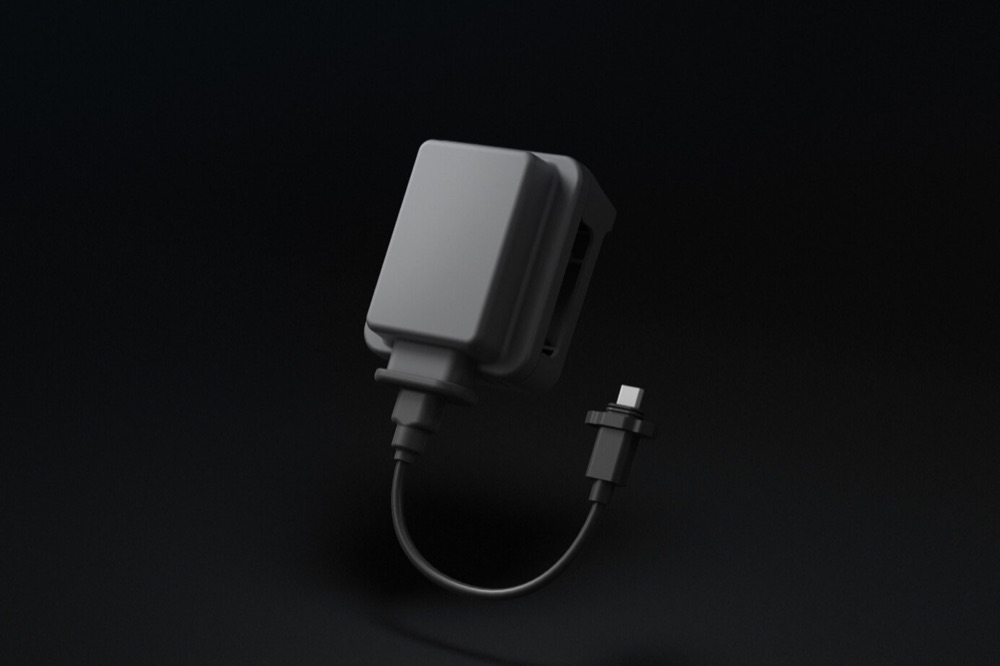

4G Enhanced Video Transmission
4G Enhanced Video Transmission (Optional)
If the O4 video transmission signal is interfered with and the mobile network is good, it automatically switches to mobile network transmission, easily handling complex scenarios such as mountain obstructions.
- Dongle Model
- IG831T
- Technical Standard
- TDD-LTE/FDD-LTE/WCDMA
- Interface
- USB Type-C (board-side female), USB 2.0 High Speed
- Antenna
- 1T2R, supports transmit antenna selection
- Size
- 43.5 mm × 23 mm × 7 mm
- Weight
- Approx. 11.27 g
- Operating Voltage and Current
- Typical operating voltage 5 V, typical operating current approx. 1 A

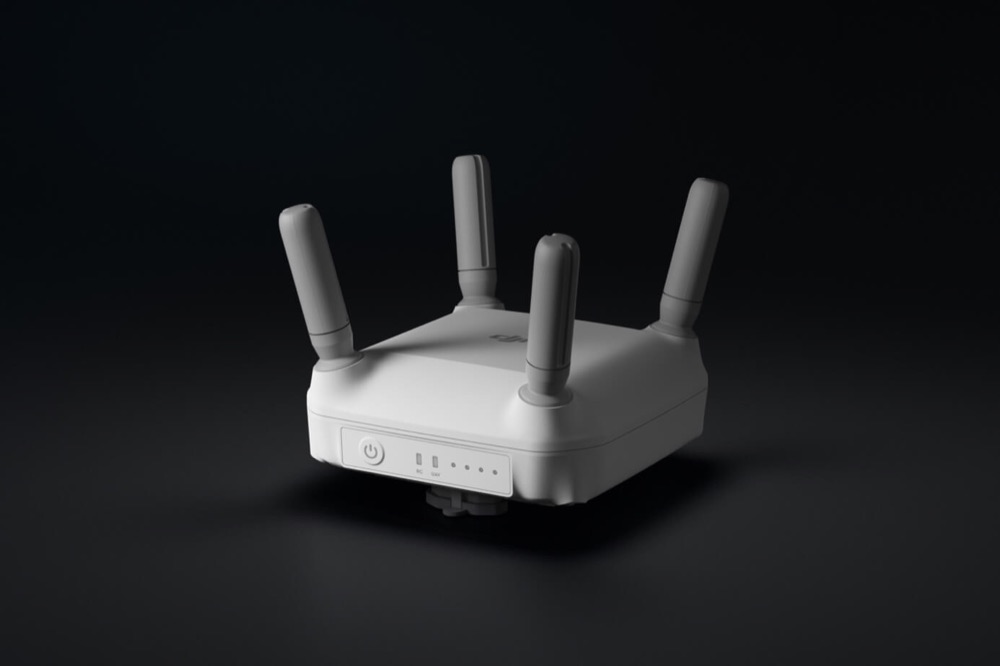

O4 Video Transmission Relay
O4 Video Transmission Relay (Optional)
If the O4 video transmission signal is interfered with and no mobile network signal is available, deploying a relay module keeps operations running smoothly.
- Model
- RL0265
- Size
- 112 mm × 112 mm × 51 mm (without antennas)
120 mm × 112 mm × 101 mm (with antennas) - Weight
- 630 g
- Input Voltage
- 2.7 V - 24 V
- Power Consumption
- 10.48 W (FCC), 8.8 W (SRRC)
- Battery Capacity
- 6500 mAh
- Runtime
- 5 h
- Operating Frequency
- 2.4000 - 2.4835 GHz, 5.150 - 5.250 GHz,5.725 - 5.850 GHz
- Effective Signal Range
- 5 km (SRRC), 4 km (MIC/KCC/CE), 8 km (FCC)
(unobstructed, interference-free environment, flight altitude 2.5 m) - Charging Time
- 2.5 h (30 W charging)
- Protection Rating
- IP55

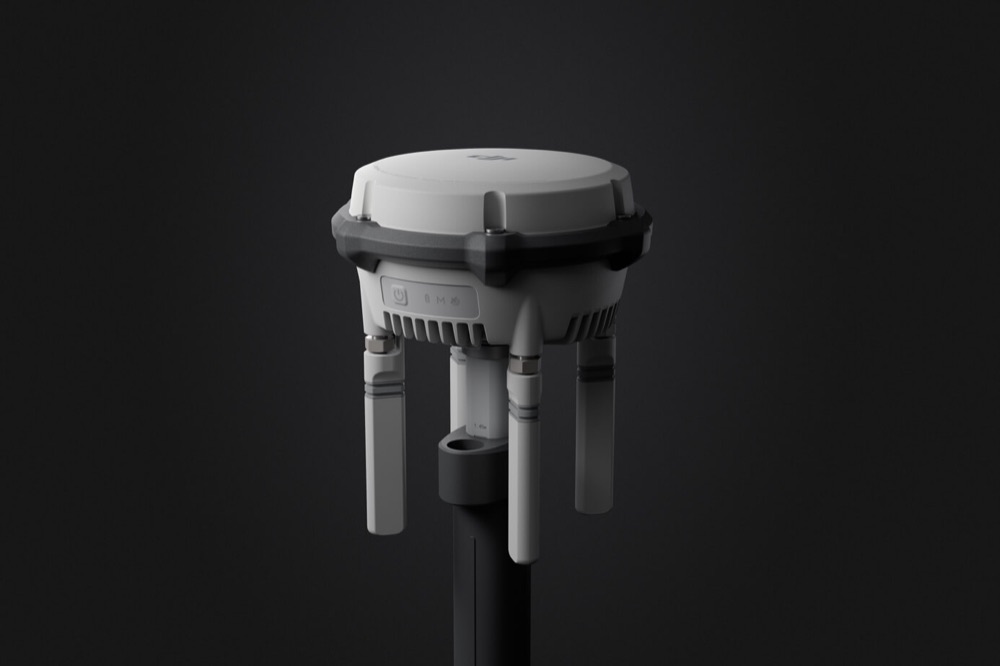

D-RTK 3 Agriculture Edition
D-RTK 3 Agriculture Edition (Optional)
Delivers centimeter-level positioning accuracy even with no network or under ionospheric interference. PPP technology requires no fixed base station setup, making it flexible and convenient.
- Model
- R600_AG
- Supported GNSS
- GPS: L1/L2/L5
BeiDou: B1I/B2I/B3I/B1C/B2A/B2B
Galileo: E1/E5a/E5b/E6
GLONASS: G1/G2
QZSS: L1CA/L2C/L5
L-BAND - Size
- 345 mm × 244 mm × 300 mm
- Weight
- 3.77 kg (incl. packaging)
- Power Consumption
- 7 W
- Battery Capacity
- 6500 mAh
- Runtime
- 7 h
